2mm 1050 H24 Aluminum Mirror Sheet

Panimula

2mm 1050 H24 Aluminum Mirror Sheet is more than a material; it’s a versatile solution for high-reflectivity surfaces that demand both durability and visual appeal.

In modern architecture, interior design, mga signage, and solar applications, the combination of a near-pure aluminum alloy (1050) with the H24 temper (strain-hardened) yields a sheet that is easy to work with, highly reflective when finished to a mirror surface, and capable of withstanding daily wear.

The 2mm thickness adds a robust rigidity that simplifies handling and assembly while keeping weight manageable for decorative panels and structural interfaces.

This post introduces 2mm 1050 H24 Aluminum Mirror Sheet in depth, with practical guidance on properties, processing, mga aplikasyon, and supplier considerations.

It also provides objective comparisons, data-driven insights, and actionable recommendations to help engineers, specifiers, Mga Tagalikha, and designers select the right mirror sheet for their projects.

We will also highlight Huawei Aluminum, a prominent supplier in this field, to illustrate what a reliable supply chain partner looks like, including quality controls, Mga sertipikasyon, and service capabilities that backing 2mm 1050 H24 Aluminum Mirror Sheet from a reputable producer.

2mm 1050 H24 Aluminum Mirror Sheet

What is 2mm 1050 H24 Aluminum Mirror Sheet?

Composition and temper

• haluang metal: 1050 is part of the commercially pure aluminum family (ang 1000 serye ng mga). It typically contains not less than 99.5% aluminyo, with trace elements such as magnesium and silicon kept to very low levels. This high aluminum content gives exceptional corrosion resistance and excellent workability.
• Temper: H24 denotes a specific heat-treat and strain-hardening process. Sa praktikal na mga termino, H24 means the metal has been strain-hardened to a defined level and then stabilized, balancing strength and ductility. For 1050-H24, the material becomes more resistant to deformation than annealed grades, while still retaining good formability for bending, pag stamp ng, and shaping.

Implications for your project:
– Excellent formability relative to harder alloys, which simplifies shaping into decorative profiles, mga reflector, and panels.
– Good resistance to weathering and oxidation, especially critical for outdoor or semi-exposed installations.
– Consistent performance in environments where cleanliness and brightness of the reflective surface matter.

Surface mirror finish process

The defining feature of a mirror aluminyo sheet is the surface polish. For 2mm 1050 H24 Aluminum Mirror Sheet, the finishing process typically includes:
– Mechanical and/or chemical-mechanical polishing to achieve a very smooth surface, often with surface roughness Ra in the sub-micron range.
– Cleaning and surface conditioning to remove oils, oxides, and particulates that might mar the mirror finish.
– Optional protective measures such as a clear coat or film to guard against scratches during handling, gawa gawa lang, or installation.
– Optional protective backing or liner for transport and storage to preserve the mirror’s brightness before installation.

Key performance outcomes:
– High specular reflectivity on visible light, which makes the sheet ideal for architectural reflectors, interior design accents, and optical applications where light amplification is desired.
– Consistent mirror finish across a wide width, enabling uniform appearance for large panels or continuous surfaces.

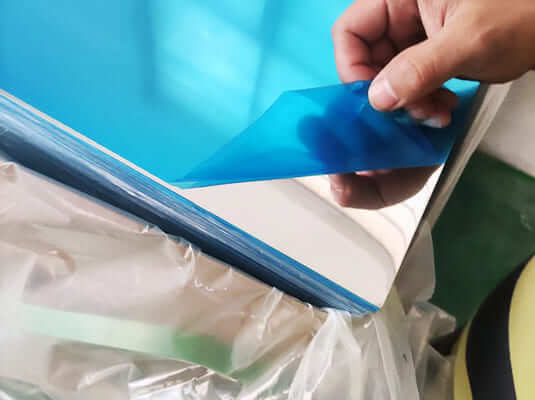

Huawei 1050 Aluminum Mirror Sheet With Bluefilm

Typical specifications and ranges

Because production tolerances vary by rolling mill, finishing line, and customer spec, you’ll commonly see the following ranges for 2mm 1050 H24 Aluminum Mirror Sheet:
– Alloy: 1050 (99.5%+ Al)
– Temper: H24
– Thickness: 2.0 ± 0.05 mm (typical tolerance; some suppliers offer ±0.1 mm depending on processing)
– Width: Up to several thousand millimeters (depending on line capacity; common portable panels range from 1000 sa 2000 mm for ease of fabrication)
– Surface finish: Mirror grade with Ra often 0.1–0.4 μm after finishing (varies with polishing technology)
– Density: ~2.70–2.71 g/cm3
– Thermal conductivity (typical for aluminum): ~235–240 W/m·K
– Electrical conductivity: ~62–68% IACS (for pure 1050, near 100%; for alloyed with trace impurities, slightly reduced)
– Yield strength (H24): generally in the lower tens of MPa range (relative to harder alloys), with actual values highly dependent on exact tempering and processing
– Ultimate tensile strength (Mga UTS): commonly in the 90–120 MPa range for 1050-H24 in practice
– Elongation (sa 50 mm or similar gauge length): often in the 15–25% range depending on prior work-hardening and thickness

Tala: These values are representative of industry practice and can vary by mill, coil batch, and finishing technique. Always verify with the supplier’s certified test data and material test reports (Mga MTR) for your project.

Why 2mm thickness matters

• Structural and installation practicality: The 2mm thickness provides a sturdy, yet still flexible sheet that can be cut, nabutas na ang butas, and formed with standard metalworking tools. It offers a favorable strength-to-weight ratio for large wall panels, sign faces, or decorative elements.
• Handling and logistics: Mid-thickness sheets like 2mm are easier to transport and install than very thin foils, while still being lighter than thicker, more rigid panels.
• Mirror quality balance: A 2mm sheet supports a durable mirror finish with a consistent brightness, while minimizing deflection that can be seen on very thin panels.

Surface durability and protection

• Scratches and abrasion: Mirror surfaces can be vulnerable to micro-scratches during handling and fabrication. Engaging protective films during cutting and assembly can preserve brightness until final installation.
• Environmental protection: Depending on the environment, applying a clear protective coating or sealant can prolong life in outdoor or harsh indoor settings. Some customers choose to apply scratch-resistant polymer coatings on the backside to improve durability without affecting optical performance.

Applications and industries

Architectural and interior design

• Feature walls, columns, and decorative panels: The bright, reflective surface of 2mm 1050 H24 Aluminum Mirror Sheet can create the illusion of more space, enhance lighting, and add a premium finish to interiors.
• Signage and display panels: Indoor signage, information boards, and display backdrops benefit from the reflector properties and ease of fabrication.
• Lighting fixtures and reflectors: The reflective surface can improve light distribution in fixtures, producing a more uniform glow without requiring complex optics.

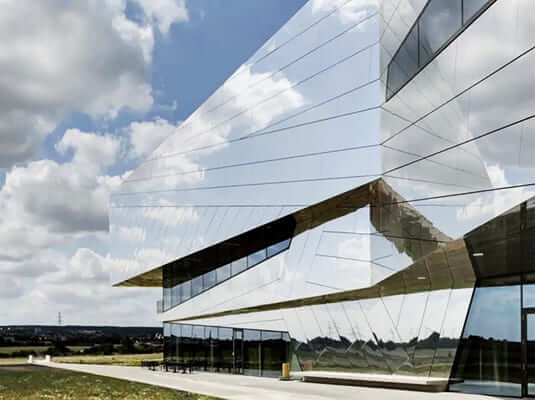

2mm 1050 H24 Aluminum Mirror Sheet for Construction

Automotive, transportasyon, and signage interiors

• Interior trim and trim strips: The work-hardening range of H24 helps with form stability in interior components that must resist deformation.
• Display panels in vehicles or transit hubs: Mirror sheets can provide aesthetically pleasing surfaces with good brightness and clarity.

Solar reflectors and energy applications

• Reflective surfaces in solar concentrators or solar ovens: The mirrored surface supports high optical efficiency for concentrating sunlight to a focal point or line, particularly in non-thermally demanding environments.
• Daylighting systems: In architectural daylighting, carefully designed mirror sheets can contribute to indirect lighting strategies, reducing artificial light usage.

Mga Elektronika, consumer products, and signage aesthetics

• Decorative faceplates and enclosures: The mirror-like finish creates a premium, high-contrast appearance that enhances consumer perception of quality.
• Display lenses and panels: In limited applications, the mirror surface can help direct light in compact assemblies.

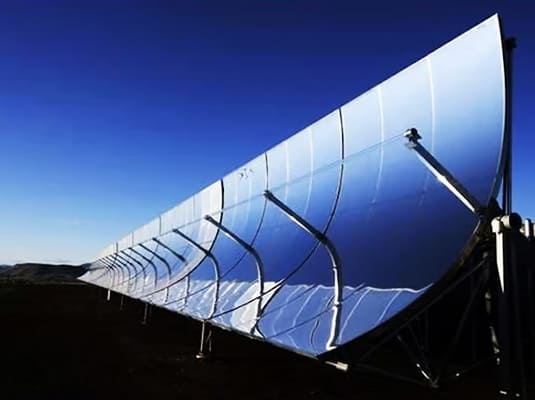

Aluminum Mirror Sheet for Solar Reflectors

Material performance and comparison

Mechanical properties and behavior

• Lakas at pagkapormal: 1050-H24 is comparatively soft among aluminum alloys, but the H24 temper makes it sufficiently stiff for many thin panel applications while still allowing bending and shaping operations without cracking.
• Ductility and elongation: The strain-hardened state of H24 preserves ductility, enabling forming operations and reducing the risk of cracking in corners and bends.
• Ang katigasan ng ulo: The material is generally softer than heat-treatable alloys such as 6061 o 7075, but this softness is an advantage for achieving a smooth mirror surface with fewer microstructural defects.

Physical properties and performance data

• Densidad ng katawan: ~2.70–2.71 g/cm3
• Thermal kondaktibiti: ~235–240 W/m·K
• Koepisyent ng thermal expansion: ~22.0–23.0 μm/m·K (approximate)
• Kondaktibiti ng kuryente: high for aluminum, but typical values drop slightly due to trace impurities in commercially pure 1050
• Pagninilay (polished mirror): roughly 85–92% in the visible spectrum depending on surface finish quality and protective coatings

Notes for specifiers:
– If your project requires a specific reflectivity target (halimbawa na lang, a precise luminance distribution for a daylighting plan), coordinate with the supplier on mirror finish grade, polishing method, and any protective coatings.
– In outdoor applications, confirm environmental resistance to humidity, spray ng asin (if near coastlines), and UV exposure. Some mirror surfaces may require protective films or coatings to preserve brightness in outdoor conditions.

Comparisons: 2mm 1050 H24 Mirror Sheet vs alternatives

Important notes:
– All values are indicative. Actual performance depends on exact alloy composition, Pamahiin, Pagtatapos ng Ibabaw, patong na patong, and fabrication processes. Always obtain certified test data (MTR) from your supplier for precise comparisons.

Surface treatment options and their impact

• Pagpapahid ng langis: Para sa 1050 serye ng mga, anodizing can be less common for mirror surfaces, but protective coatings and color anodizing can be used if the aesthetic is acceptable and the corrosion protection beyond the mirror finish is required.
• Clear coat protection: A thin, transparent polymer topcoat can provide abrasion resistance and environmental protection without significantly affecting reflectivity.
• Ion-assisted depositions: In specialized cases, decorative or functional coatings can be added to improve scratch resistance or color effects, with minimal impact on visible reflectivity if designed carefully.

Supplier overview: Huawei Aluminum

About Huawei Aluminum

Huawei Aluminum, a notable supplier in the aluminum sheet and plate market, has established capabilities that align well with the needs of 2mm 1050 H24 Aluminum Mirror Sheet customers.

The company emphasizes full-spectrum processing—from raw material handling and continuous casting to hot rolling, malamig na pagulong, tempering, and surface finishing.

Huawei Aluminum’s emphasis on quality control, supply chain resilience, and global distribution networks makes it a credible option for customers seeking reliable supply chain partnerships for mirror sheet applications.

Key strengths to look for when evaluating Huawei Aluminum as a supplier:
– End-to-end manufacturing capabilities: The ability to produce both the raw material and finished mirror surfaces reduces lead times and improves consistency.
– Surface finishing capacity: In-house mirror polishing lines and finishing processes can shorten the turnaround from order to delivery and allow tighter surface tolerances.
– Certifications and quality controls: .ISO 9001, .ISO 14001, and relevant aerospace or construction-grade process certifications are typical indicators of quality management maturity.
– Global logistics and after-sales support: Strong after-sales services, on-time delivery, and technical support help project teams stay on schedule.

Why choose Huawei Aluminum for 2mm 1050 H24 Mirror Sheet

• Consistent mirror quality: A robust mirror finish requires precise polishing and careful surface treatment; a supplier with in-house finishing lines minimizes variation across batches.
• Customization options: The ability to tailor thickness tolerances, lapad ng katawan, and protective film options to project needs reduces rework and supply chain risk.
• Transparent data: Mga MTR, coating specifications, and surface finish reports support QA processes, enabling reliable project documentation.
• Service ecosystem: Access to technical advisory, cutting-to-size services, and quick sample provisioning helps with prototyping and design validation.

Quality control and certifications

• Material traceability: Comprehensive lot tracing from incoming raw material to finished mirror sheets.
• Surface quality inspections: Visual and metrology-based checks for surface uniformity, specular reflection, and defect density.
• Mechanical testing: Paghatak ng balat, tigas na tigas, and bend tests where applicable, along with dimensional tolerances checks.
• Non-destructive testing (NDT): Eddy current or other non-destructive methods may be used for quality assurance on large panels or critical applications.
• Environmental and safety compliance: Adherence to environmental management standards and safety regulations in manufacturing environments.

Production and processing considerations

Pagputol, shaping, and forming

• Pagputol: 2mm 1050 H24 Mirror Sheet can be cut with standard metalworking tools (shears, saws, pagputol ng laser, and waterjet), but care must be taken to avoid marring the mirror surface. Protective films can shield the surface during cutting.
• Bending: The H24 temper provides adequate formability for moderate bends. Tight radii on sharp curves can create surface micro-cracks or distort the mirror if not handled properly. Use proper tooling radii and slow forming speeds.
• Drilling and punching: Use appropriate drill bit types (hal., high-speed steel or carbide) and pilot holes to minimize micro-cracking on the mirror surface. Deburr after punching to preserve surface quality.

Surface protection during fabrication

• Protective films: Temporary protective films are commonly used during cutting and assembly to prevent scratching. Ensure films are compatible with aluminum surfaces and do not leave residues after removal.
• Cleanliness: Keep the surface free of grease, alikabok na, and abrasive particles during handling to preserve reflectivity.

Finishing and coatings

• Polishing quality: Mirror finish depends on abrasive sequence, polishing time, and equipment. Consistency is key; plan for QA checks after finishing.
• Mga Coatings: If environmental exposure is anticipated, consider protective coatings that maintain reflectivity while increasing scratch resistance and UV stability. Always verify that coatings do not degrade the optical brightness.

Tolerances and fit

• Dimensional tolerances: For 2mm sheet, typical thickness tolerances ±0.05–0.1 mm are common; width tolerances depend on the processing line.
• Flatness: Large mirror panels require flatness control to avoid bowing or waviness that can distort reflected light. This is often addressed with careful cooling, controlled rolling, and post-processing straightening if needed.

Paghawak, storage, and installation

• Paghawak: Use soft, non-marring supports and protective packaging. Avoid stacked loads that could scratch surfaces.
• Imbakan: Store flat, with protective sheets or in a clean, dry environment to avoid corrosion at any micro-scratched spots.
• Pag-install: Use non-abrasive fasteners, avoid over-tightening, and consider edge protection to prevent edge damage to the reflective surface.

Quality assurance and testing

Surface quality testing

• Visual inspection: Check for scratches, pits, or milling marks. Uniform brightness is essential for a high-quality mirror.
• Pagkamagaspang ng ibabaw: Verify Ra values post-polish, ensuring they meet the agreed mirror grade.
• Gloss finish measurement: A glossometer can quantify surface brightness, which helps ensure consistency across panels.

Mechanical testing

• Tensile testing: Confirm strength in the H24 temper; verify typical 2mm thickness sample ranges.
• Hardness testing: Brinell or microhardness tests can verify that the tempering state aligns with the specifications.

Non-destructive testing (NDT)

• Eddy current and other non-destructive techniques help verify surface integrity and detect sub-surface defects that might affect long-term performance.
• Dimensional stability checks: Thermal cycling tests to verify that the sheet maintains flatness and thickness tolerances under anticipated service conditions.

Documentation and traceability

• Material Test Reports (Mga MTR) and certificates of conformity: These documents accompany shipments and are essential for QA in regulated or certified installation environments.
• Process documentation: Finishing parameters, polishing equipment calibration, and surface treatment records should be part of the project file.

Comparative table: 2mm 1050 H24 Mirror Sheet vs alternatives

Notes:
– The table emphasizes practical trade-offs. For most interior and sheltered external applications, 2mm 1050 H24 Mirror Sheet remains a reliable balance of cost, Reflectivity, and workability. In harsh outdoor environments or specialized performance scenarios, alternate alloys or coated/multi-layer solutions may be favorable.

FAQ

Q1: What makes 2mm 1050 H24 Aluminum Mirror Sheet suitable for interior design?

A2: Its high reflectivity, magandang formability, and corrosion resistance make it an ideal surface for interior design elements like feature walls, mga kisame, and decorative panels. The 2mm thickness offers a good balance between stiffness and weight, making fabrication and installation straightforward.

Q2: How does the mirror finish impact performance in lighting designs?

A2: A high-quality mirror finish increases brightness and even distribution of light. The reflectivity in the visible spectrum (typically 85–92% for well-polished 1050 mirror surfaces) enhances daylighting and artificial lighting effects, enabling designers to sculpt light with greater control.

Q3: Can 2mm 1050 H24 Mirror Sheet be used outdoors?

A3: Oo nga, but outdoor performance depends on surface protection and coatings. For prolonged exposure, a protective coating or weather-resistant film can preserve brightness and resist corrosion. It’s essential to confirm environmental ratings with the supplier and to apply protective measures as needed.

Q4: What is the typical lead time for 2mm 1050 H24 Mirror Sheet from a supplier like Huawei Aluminum?

A4: Lead times vary by order size, current production load, and customization requirements (lapad ng katawan, patong na patong, film). A reputable supplier will provide a schedule with milestones for material certification, finishing, pagputol ng, and delivery. Expect several weeks for standard stock, longer for custom sizes or protective options.

Q5: What kind of finishing options affect reflectivity?

A5: Polished mirror finishes deliver the highest reflectivity. Coatings and protective films may slightly reduce brightness but can improve scratch resistance and long-term durability. It’s important to discuss the trade-offs with the supplier to maintain the desired optical performance.

Q6: How do I calculate the weight of 2mm 1050 H24 Mirror Sheet per square meter?

A6: Weight per square meter is thickness (in meters) x density (approximately 2.70–2.71 g/cm3). For a 2 kapal ng mm, this is 0.002 m x 2700 kg/m3 ≈ 5.4 kg/m2.

Q7: Are there alternatives to 2mm 1050 H24 Mirror Sheet if higher strength is required?

A7: Oo nga. Alternatives include higher-strength aluminum alloys (tulad ng 5000 o 7000 serye ng mga) or other tempered states (hal., H18 or T6) that provide greater stiffness and strength. Gayunpaman, these alloys may have different workability and corrosion characteristics and could reduce reflectivity if not finished carefully.

Q8: What kind of quality documentation should I expect with a shipment?

A8: Reputable suppliers provide Material Test Reports (Mga MTR), processing certificates, surface finish specifications, thickness tolerances, and reflectivity testing data. Ensure you receive these documents with your order to support QA and compliance requirements.

Pangwakas na Salita

2mm 1050 H24 Aluminum Mirror Sheet represents a pragmatic fusion of reflectivity, pagiging formable, at tibay. Its commercially pure aluminum composition provides excellent corrosion resistance and easy processing, while the H24 temper delivers the right balance of strength and ductility for forming and assembly.

The mirror finish, when properly produced, yields high reflectivity that can power a range of applications—from decorative architectural panels to functional reflectors in lighting and solar contexts.

Huawei Aluminum stands out as a credible supplier option due to its integrated production flow, finishing capabilities, and emphasis on quality and traceability.

When selecting a supplier for 2mm 1050 H24 Aluminum Mirror Sheet, prioritize certified data, reliable lead times, and after-sales support that can help with on-site fabrication challenges and long-term maintenance planning.

If you plan a project that requires a bright, matibay na matibay, and workable mirror surface, 2mm 1050 H24 Aluminum Mirror Sheet could be the right choice.

By understanding the material’s properties, processing considerations, and supplier capabilities, you can make informed decisions that optimize aesthetics, functionality, and project lifecycle costs.
