6082 Aluminum Alloy Sheet

1450 Views 2023-11-30 02:18:05

Alloy 6082
Temper O, T4, T52, T6, T651
Thickness 0.1-500mm, Customize
Size 4×8′, 5×10 foot, 1000x2000mm, 1000x2500mm, Customize
Surface Mill Finish, Polished, Brushed, Checkered, Embossed, Colored, Diamond,etc.
Port Shanghai, Qingdao
Currency USD, EUR, RMB
Whatsapp E-mail Contact

Know More About 6082 Aluminum Alloy Sheet

6082 aluminum alloy sheet is a heat-treatable alloy with the highest strength among the 6000 series alloys. 6082 aluminum alloy plate is called a structural alloy.

6082 aluminum alloy is a medium-strength alloy with good corrosion resistance, formability, weldability, and machinability.

The comprehensive performance of 6082 aluminium alloy sheet is better than that of 6061 aluminum alloy, and it has become an important material in aerospace, automobiles, ships, construction and other fields.

6082 aluminum alloy sheet

6082 aluminum alloy sheet

6082 aluminum alloy sheet is a very commonly used alloy product in Europe and is also highly used in the United States. 6082 alloy generally has good processing characteristics and good anodic reaction properties. The most commonly used anodic reaction methods include impurity removal, impurity removal and dyeing, coating, etc.

6082 Aluminum Alloy Chemical Composition

Chemical Element % Present
Manganese (Mn) 0.40 – 1.00
Iron (Fe) 0.0 – 0.50
Magnesium (Mg) 0.60 – 1.20
Silicon (Si) 0.70 – 1.30
Copper (Cu) 0.0 – 0.10
Zinc (Zn) 0.0 – 0.20
Titanium (Ti) 0.0 – 0.10
Chromium (Cr) 0.0 – 0.25
Other (Each) 0.0 – 0.05
Others (Total) 0.0 – 0.15
Aluminium (Al) Balance

Data Sources: https://www.aalco.co.uk/datasheets/Aluminium-Alloy_6082-T6~T651_148.ashx

As a relatively new alloy, the higher strength of Aluminium alloy 6082 has seen it replace 6061 in many applications.

The addition of a large amount of manganese controls the grain structure which in turn results in a stronger alloy.

1.5mm 6082 aluminum alloy sheet

1.5mm 6082 aluminum alloy sheet

Physical properties of 6082 aluminum alloy

  • 1. Density: The density of 6082 aluminium alloy is 2.71g/cm³, which is lighter than ordinary steel and helps reduce structural load and improve transportation efficiency.
  • 2. Melting point of aluminum: The melting point of 6082 aluminum alloy is about 582-652°C, and has good high temperature stability.
  • 3. Thermal expansion coefficient: The thermal expansion coefficient of 6082 aluminum alloy is 23.2×10^-6/K, which has good thermal stability.
  • 4. Hardness: The hardness of 6082 aluminum alloy can reach 95HB in T6 state, which has high hardness and strength.
  • 5. Elastic modulus: 70 MPa
  • 5. Thermal conductivity: Thermal conductivity is 160W/(m.K)
  • 7. Thermal conductivity: 180 W/m.K

Common dimensions of 6082 aluminum plate

Common sizes of 6082 aluminum sheets can vary depending on the supplier, production plant and specific application. Here are some possible common size ranges for 6082 aluminum sheets:

Bluefilm 6082 aluminum alloy sheet

Bluefilm 6082 aluminium alloy sheet

Width: The width of the aluminum plate ranges from 100-2000mm

Length: The production range of 6082 aluminum plate length is 500-6000mm

Common sizes are:

  • 1000×2000 6082 aluminum sheet
  • 1500×2000 6082 aluminum sheet
  • 1000×3000 aluminum sheet 6082
  • 1500×3000 aluminum sheet 6082
  • 2000×3000 aluminum sheet 6082
  • 1220x2440aluminum sheet (4×8 aluminum sheet)
  • 1524×3048(5×10) 6082 aluminum plate

Points worth paying attention to in 6082 aluminum alloy

Welding properties of 6082 aluminum alloy

6082 aluminum alloy has good weldability, but the strength of the welded area is low. When welding itself, it is recommended to use 4043 alloy wire. If welding aluminum alloys 6082 to 7005, the wire used should be alloy 5356.

How Strong Is 6082 Aluminum?

6082 aluminum is classified as a medium-strength aluminum alloy but is one of the strongest commonly used alloys in the 6000 series. If it is heat treated to T651, it is the strongest alloy in the 6000 series(6061 aluminum, 6063 aluminum, 6082 aluminum). When compared to 6061 aluminum alloy, another common 6000 series grade, 6082-T651 has between 10 and 18 % higher tensile strength.

6082 aluminum diamond sheet

6082 aluminum diamond sheet

Operating Temperature Range Of 6082 Aluminum Alloy Sheet

The 6082 aluminum alloy has a melting temperature of 585 °C. However, its optimal working temperature is at or below 170 °C, as the mechanical strength of the alloy decreases proportionally as the operating temperature approaches the melting point. Aluminum alloys are not designed for high-temperature applications. If high-temperature resistance is required, steels are a better option.

Huawei 6082-T4 aluminum sheet/plate quality requirements

  • 1. Tensile strength: 205Mpa~250Mpa, ultimate 280Mpa.
  • 2. Yield strength: ≥110 Mpa
  • 3. Elongation: ≥12%
  • 4. The surface is smooth and clean, with no lines, no extrusion lines, no abrasions, scratches, no pits, and no obvious yin and yang surfaces.
  • 5. The geometric dimensions comply with the drawing requirements.
  • 6. Ensure that within 15 days from the completion of extrusion to transportation and customer processing, there is no change in mechanical properties and no brittleness or cracking occurs during bending.

Common tempers of 6082 aluminum

  • O-Soft
  • T4 – Solution heat treated and naturally aged to a substantially stable condition
  • T6 – Solution heat treated and artificially aged
  • T651 – Solution heat treated, stress relieved by stretching then artificially aged

The O and T4 tempers of Alloy 6082 are suitable for bending and forming applications.

T5 and T6 conditions are suitable for requirements of good machinability.

6082 aluminum alloy applications

6082 aluminum alloy is widely used in many fields due to its good strength, corrosion resistance and lightweight properties. The following are common application areas of 6082 aluminum alloy:

Aerospace industry: 6082 aluminium alloy is commonly used to manufacture aircraft structures and components, such as wings, fuselages, landing gear, etc. Its lightweight and high strength allow aircraft to reduce their own weight and improve fuel efficiency and performance.

Shipbuilding: 6082 aluminum alloy is used to manufacture ship hull structures, ship parts and ship equipment. Its corrosion resistance gives it good durability in seawater environments.

Shipbuilding used 6082 aluminum sheet

Shipbuilding used 6082 aluminum sheet

Transportation: 6082 aluminium alloy is also widely used in other types of transportation, such as trains, bicycles, and motorcycles, to improve the performance and durability of transportation.

Automobile industry: 6082 aluminum alloy also has important applications in automobile manufacturing, especially in the manufacture of body structures, chassis parts and engine parts. Its lightweight properties help improve fuel efficiency and reduce overall vehicle weight.

Construction and Structural Engineering: 6082 aluminum alloy is used in the construction and structural fields to manufacture bridges, building frames, support structures, etc. Its high strength helps provide necessary structural support.

6082 aluminum sheet for building

6082 aluminum sheet for building

Sporting Goods: Due to its light weight, strength and corrosion resistance, 6082 aluminum alloy is often used to manufacture sporting goods, such as hiking poles, bicycle frames, etc.

6082 aluminum suppliers

Huawei Aluminum has been engaged in the processing and sales of aluminum products for 22 years. We have skilled workers and advanced machines. The products we can provide you include:

  • 6082 aluminum sheet
  • 6082 Aluminum coils
  • 6082 Aluminum strip
  • 6082 Aluminum profile
  • 6082 aluminum diamond sheet

Casting production process and its introduction

The purpose of melting and casting is to produce alloys with satisfactory composition and high purity of melt, so as to create favorable conditions for casting alloys of various shapes.

Melting and casting process steps: batching --- feeding --- melting --- stirring after melting, slag removal --- pre-analysis sampling --- adding alloy to adjust the composition, stirring --- refining --- static Setting——Guide furnace casting.

Hot rolling production process and its introduction

  • 1. Hot rolling generally refers to rolling above the metal recrystallization temperature;
  • 2. During the hot rolling process, the metal has both hardening and softening processes. Due to the influence of deformation speed, as long as the recovery and recrystallization process is too late, there will be a certain work hardening;
  • 3. The recrystallization of the metal after hot rolling is incomplete, that is, the coexistence of recrystallized structure and deformed structure;
  • 4. Hot rolling can improve the processing performance of metals and alloys, reduce or eliminate casting defects.
    • Hot rolling equipment

      Casting and rolling process

      Casting and rolling process: liquid metal, front box (liquid level control), casting and rolling machine (lubrication system, cooling water), shearing machine, coiling machine.

      • 1. The casting and rolling temperature is generally between 680°C and 700°C. The lower the better, the stable casting and rolling line usually stops once a month or more to re-stand. During the production process, it is necessary to strictly control the liquid level of the front tank to prevent low liquid level;
      • 2. Lubrication uses C powder with incomplete combustion of gas for lubrication, which is also one of the reasons for the dirty surface of casting and rolling materials;
      • 3. The production speed is generally between 1.5m/min-2.5m/min;
      • 4. The surface quality of products produced by casting and rolling is generally relatively low, and generally cannot meet products with special physical and chemical performance requirements.
        • Cold rolling production process

          • 1. Cold rolling refers to the rolling production method below the recrystallization temperature;
          • 2. There will be no dynamic recrystallization during the rolling process, and the temperature will rise to the recovery temperature at most, and the cold rolling will appear in a work hardening state, and the work hardening rate will be large;
          • 3. The cold-rolled sheet and strip have high dimensional accuracy, good surface quality, uniform structure and performance, and products in various states can be obtained with heat treatment;
          • 4. Cold rolling can roll out thin strips, but at the same time, it has the disadvantages of high energy consumption for deformation and many processing passes.
            • Casting rolling

              Introduction to finishing production process

              • 1. Finishing is a processing method to make the cold-rolled sheet meet the customer's requirements, or to facilitate the subsequent processing of the product;
              • 2. The finishing equipment can correct the defects produced in the hot rolling and cold rolling production process, such as cracked edge, oily, poor plate shape, residual stress, etc. It needs to ensure that no other defects are brought into the production process;
              • 3. There are various finishing equipments, mainly including cross-cutting, slitting, stretching and straightening, annealing furnace, slitter, etc.

Aluminum alloy has the characteristics of low density, good mechanical properties, good processing performance, non-toxic, easy to recycle, excellent electrical conductivity, heat transfer and corrosion resistance, so it has a wide range of applications.

Aerospace: used to make aircraft skins, fuselage frames, girders, rotors, propellers, fuel tanks, wall panels and landing gear struts, as well as rocket forging rings, spacecraft wall panels, etc.

Aluminum alloy used for aerospace

Aluminum alloy used for aerospace

Transportation: used for car body structure materials of automobiles, subway vehicles, railway passenger cars, high-speed passenger cars, doors and windows, shelves, automotive engine parts, air conditioners, radiators, body panels, wheels and ship materials.

Traffic application

Traffic application

Packaging: All-aluminum pop cans are mainly used as metal packaging materials in the form of thin plates and foils, and are made into cans, lids, bottles, barrels, and packaging foils. Widely used in the packaging of beverages, food, cosmetics, medicines, cigarettes, industrial products, medicines, etc.

Packaging application

Packaging application

Printing: Mainly used to make PS plates, aluminum-based PS plates are a new type of material in the printing industry, used for automatic plate making and printing.

PS printing

PS printing

Architectural decoration: aluminum alloy is widely used in building structures, doors and windows, suspended ceilings, decorative surfaces, etc. due to its good corrosion resistance, sufficient strength, excellent process performance and welding performance.

Aluminum alloy construction application

Aluminum alloy construction application

Electronic products: computers, mobile phones, refrigerator shells, radiators, etc.

Electronic product application

Electronic product application

Kitchen supplies: aluminum pots, aluminum basins, rice cooker liners, household aluminum foil, etc.

Kitchen application

Kitchen application

Packaging Of Aluminum Sheet/Coil

Every detail of packaging is where we pursue perfect service. Our packaging process as a whole is as follows:

Lamination: clear film, blue film, micro-mucosal, high-mucosal, laser cutting film (2 brands, Novacell and Polyphem);

Protection: paper corner protectors, anti-pressure pads;

drying: desiccant;

Tray: fumigated harmless wooden tray, reusable iron tray;

Packing: Tic-tac-toe steel belt, or PVC packing belt;

Material Quality: Completely free from defects such as white rust, oil spots, rolling marks, edge damage, bends, dents, holes, break lines, scratches, etc., no coil set.

Port: Qingdao or other ports in China.

Lead time: 15-45 days.

What is 1060 pure aluminum sheet

Aluminum sheet/plate packaging process

What is 1060 pure aluminum sheet

Aluminum coil packaging process

F: Are you a manufacturer or a trader?

Q: We are a manufacturer, our factory is at No.3 Weier Road, Industrial Zone, Gongyi, Henan, China.

F: What is the MOQ for ordering the product?

Q: Our MOQ is 5 tons, and some special products will have a minimum order quantity of 1 or 2 tons.

F: How long is your lead time?

Q: Generally our lead time is about 30 days.

F: Do your products have quality assurance?

Q: Yes, if there is a quality problem with our products, we will compensate the customer until they are satisfied.



Latest Blogs

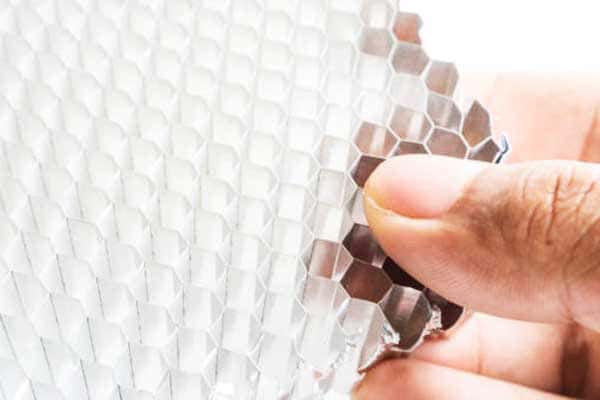

3004 honeycomb aluminum foil
