Marine Grade 5086 H116 Aluminum Plate

SAYA. Perkenalan

Marine grade 5086 H116 aluminum plate occupies a uniquely valuable position in the aluminum shipbuilding material spectrum — one that is frequently underappreciated precisely because it sits between two more prominently specified alloys.

More corrosion-resistant and formable than the 6061 seri, yet more workable and weldable than the high-strength 5083, 5086 H116 delivers a combination of properties that makes it irreplaceable across a broad range of marine applications: recreational fishing boats with complex hull forms, sailboat hulls requiring flared topsides, commercial workboat secondary structure, offshore platform walkways, and military vessel superstructures.

This article delivers a comprehensive, authoritative examination of marine grade 5086 H116 aluminum plate across eighteen analytical dimensions — metallurgy, temper science, manufaktur, properti, kinerja korosi, the critical 5086-versus-5083 comparison, structural design, vessel applications, pembuatan, perlindungan korosi, quality standards, regulatory frameworks, supply chain economics, Keberlanjutan, and innovation.

II. Yayasan Metalurgi: Itu 5086 Paduan aluminium

2.1 The 5xxx Series: Magnesium’s Marine Chemistry

Aluminum alloys in the 5xxx series achieve their strength and corrosion performance through magnesium dissolved in solid solution within the aluminum matrix.

Magnesium atoms, slightly larger than aluminum atoms, distort the crystal lattice, impeding dislocation movement and thereby increasing strength — a mechanism called solid solution strengthening that requires no heat treatment to activate and never diminishes through thermal exposure (below the sensitization range).

This non-heat-treatable character defines the marine performance logic of 5xxx alloys: their properties remain stable throughout vessel service life, unlike heat-treated alloys whose precipitation hardening can be partially reversed by the thermal cycles of welding and fire.

Magnesium’s second marine gift is electrochemical: it shifts the alloy’s natural corrosion potential in seawater toward more negative (anodic) values, improving resistance to pitting corrosion by making the passive film more stable and reducing the differential between the alloy matrix and the cathodic intermetallic particles that serve as pit initiation sites.

Higher magnesium content generally means better seawater corrosion resistance — which is why 5083 (4.0–4.9% Mg) outperforms 5052 (2.2–2.8% Mg) in long-term marine service.

5086 sits between these two: its 3.5–4.5% magnesium range delivers seawater corrosion resistance clearly superior to 5052 and approaching 5083, while keeping the magnesium content low enough to reduce the sensitization risk that becomes a primary engineering concern in high-Mg alloys.

2.2 Komposisi kimia: Every Element Engineered for the Sea

The composition of 5086 aluminium, defined by ASTM B209, EN 573-3, GB/T 3880, and JIS H4000, reflects deliberate marine engineering at every element:

2.3 Comparative Alloy Analysis for Marine Applications

Selecting the right marine aluminum alloy requires understanding where each falls on the performance-formability-sensitization spectrum:

5086 occupies the formability optimum of the marine alloy family. It bends more readily than 5083, welds with slightly less HAZ strength reduction, and carries equivalent sensitization protection in H116 temper — making it the logical choice whenever complex geometry, curved hull forms, or superior cold workability matters more than the 10–12% strength premium that 5083 menyediakan.

AKU AKU AKU. The H116 Temper: Marine-Specific Engineering of 5086

3.1 A Temper Born from Operational Experience

The H116 temper specification for marine aluminum alloys did not emerge from theoretical materials science — it emerged from a documented history of premature corrosion failures in vessels constructed from 5xxx alloys in tempers that passed mechanical property specifications but lacked the microstructural control needed to resist seawater’s specific corrosion mechanisms.

Exfoliation of hull plating, stress corrosion cracking in welded joints, and intergranular attack in plate that had been mildly sensitized during fabrication all contributed to the industry’s recognition that marine aluminum needed a temper designation specifically engineered around corrosion resistance, not merely around strength.

The result — codified in ASTM B928 (first published 2004, regularly revised) — defines H116 as a strain-hardened condition for 5xxx series alloys with ≥3% magnesium specifically engineered to provide resistance to exfoliation corrosion and stress corrosion cracking.

The standard mandates sensitization testing on every production lot, making H116 the only aluminum temper in routine commercial production where corrosion testing is a mandatory lot-acceptance requirement rather than an optional supplementary test.

3.2 H116 Production Pathway: Controlled Cold Work

Memproduksi 5086 H116 requires precise control over the cold reduction applied after hot rolling — a percentage that simultaneously achieves three objectives that would normally be in tension: adequate tensile strength (UTS ≥270 MPa), adequate ductility (elongation ≥10%), and the specific dislocation structure that disrupts continuous beta-phase grain boundary coverage.

The critical thermal discipline during H116 cold rolling is maintaining the plate temperature below 65°C throughout the cold reduction passes.

Cold rolling generates heat through plastic deformation, and without adequate coolant application and inter-pass cooling, rolling heat alone can drive the plate into the sensitization range — a process excursion that would produce H116-tempered mechanical properties in material that has already begun the grain boundary precipitation that H116 is designed to prevent.

3.3 Perbandingan 5086 Emosi: The Marine-Critical Distinctions

3.4 Mechanical Property of Marine Grade 5086 H116 Aluminum Plate

IV. Manufacturing Process of Marine Grade 5086 H116 Aluminum Plate

4.1 From Melt to Marine Certification: The Production Sequence

Certified 5086 H116 marine plate requires disciplined process control across six manufacturing stages, because the H116 temper’s primary function — corrosion resistance through controlled microstructure — can be destroyed by a single thermal excursion or inadequate cold reduction at any point in the sequence.

The following traces the production process from alloy preparation to certification.

4.2 Alloy Preparation and DC Casting

Itu 5086 melt is prepared by combining primary aluminum (≥99.7% Al) with precisely weighed additions of magnesium metal (achieving 3.5–4.5% Mg target) and manganese master alloy (0.20–0.70% Mn target).

Chromium addition (0.05–0.25% Cr) requires careful control — too little sacrifices the grain boundary stabilization function; too much risks chromium-bearing precipitate formation that can embrittle the alloy. Optical emission spectrometry (OES) verifies melt chemistry from ladle samples before every cast.

Dinginkan langsung (DC) semi-continuous casting produces rolling slabs typically 400–550 mm thick and 1,000–2,000 mm wide.

The DC process’s controlled solidification rate produces a fine, relatively uniform microstructure with manageable composition gradients — superior to the coarser, more segregated structure produced by continuous casting methods.

For marine plate production, DC casting is the required production route; producers attempting continuous casting of 5086 for marine applications cannot achieve the microstructural uniformity required for consistent H116 corrosion performance.

4.3 Homogenisasi: Building the Microstructural Foundation

Homogenization at 460–510°C for 8–18 hours accomplishes three functions simultaneously for 5086 slabs:

Segregation elimination: Solidification produces composition gradients across dendrite spacings (typically 50–200 μm). Holding at elevated temperature allows diffusion to redistribute magnesium, mangan, and chromium into a more uniform distribution, ensuring consistent properties throughout the plate thickness.

Dispersoid precipitation: During slow cooling from homogenization temperature, Al₆Mn and Al₁₂Mg₂Cr dispersoid particles (0.05–0.5 μm) nucleate and grow. These particles are the microstructural agents responsible for inhibiting recrystallization during hot rolling and grain growth during annealing — directly controlling the final grain structure of the H116 plate.

Non-equilibrium phase dissolution: As-cast 5086 contains metastable magnesium-rich intermetallic phases at dendrite boundaries. Homogenization dissolves these into solid solution, preparing a uniform starting microstructure for hot rolling.

4.4 Bergulir Panas: Building Thickness Reduction with Microstructural Control

Following homogenization, scalped slabs (surface-machined to remove the segregated outer 10–20 mm) are preheated to 430–500°C and hot-rolled.

The hot rolling pass schedule reduces the slab from ~400–550 mm to the hot band gauge of typically 3–20 mm through a sequence of breakdown passes (large reduction per pass, suhu tinggi) and finishing passes (smaller reduction, controlled exit temperature).

Hot rolling exit temperature — the temperature at which the strip leaves the final rolling stand — is particularly significant for 5086 H116 production.

If exit temperature is too high (above approximately 320°C), the strip recrystallizes extensively to a coarse grain structure that produces inferior surface finish in the final product.

If exit temperature is too low (below approximately 220°C), incomplete recrystallization leaves a partially worked structure that causes variable properties after subsequent annealing.

For consistent 5086 H116 properties, most producers target exit temperatures of 250–310°C with ±20°C control across the strip width.

4.5 Cold Rolling to H116 Condition

After hot band cooling to below 100°C (ensuring no sensitization during transition), cold rolling applies the controlled reduction that defines H116.

The production discipline during cold rolling encompasses three simultaneous requirements:

1. Reduction control: Achieve the specific percentage reduction (proprietary to each producer, typically 5–20% for 5086 H116) that produces UTS ≥270 MPa, YS ≥193 MPa, elongation ≥10%, and dislocation density sufficient for NAMLT ≤15 mg/cm²
2. Temperature control: Maintain plate temperature below 65°C at all times — verified by contact thermometers on the exit side of each cold rolling pass
3. Lubricant management: Apply rolling oil uniformly to control friction, heat generation, and surface cleanliness — excess lubricant contributes to surface hydrocarbon contamination that compromises subsequent coating adhesion

4.6 Quality Control Integration: Sensitization Testing at the Production Stage

ASTM B928 requires that every production lot of 5086 H116 undergo NAMLT testing before release. A “lot” is defined as all plate of the same alloy, melunakkan, and thickness produced from the same cast (panas) in the same rolling sequence.

The practical implication for large rolling mills producing multiple lots simultaneously is that NAMLT testing can represent a meaningful certification cycle time — typically adding 2–3 working days to delivery schedules.

Procurement teams must build this timeline into shipyard material delivery schedules rather than pressuring suppliers for pre-certification release.

The production quality control testing sequence before plate release:

• Komposisi kimia (by OES): Every heat → accept/reject versus ASTM B209 / EN 573-3 limits
• Pengujian tarik (ASTM E8): Every lot → UTS, YS, elongation versus H116 minimums
• NAMLT (ASTM G67): Every lot → mass loss ≤15 mg/cm²
• Kekerasan (Brinell): Every lot (spot check) → 60–75 HB range confirmation

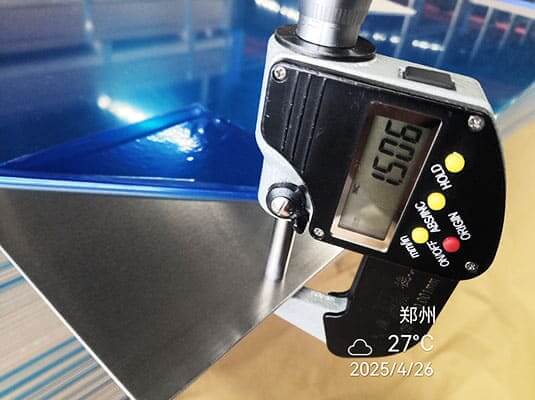

• Dimensional inspection: Every plate → thickness, lebar, panjang, kebosanan, camber
• Ultrasonic testing (ASTM B594): As specified → internal lamination and inclusion detection

V. Sifat fisik dan mekanik: The Complete Profile

5.1 Structural Properties Comparison: 5086 H116 vs. Key Alternatives

Understanding Marine Grade 5086 H116 Aluminum Plate in isolation is less useful than understanding it in context.

The following comparison positions 5086 H116 against its most common marine alternatives across the properties that govern structural design decisions:

The HAZ yield strength row reveals one of 5086’s underappreciated advantages: its welded joint HAZ properties, while lower than the parent plate, compare favorably with 5083’s HAZ values because the lower starting yield strength translates into a more favorable HAZ joint efficiency ratio.

For a structural panel where welded joint efficiency (HAZ YS / parent YS) governs the design, 5086 achieves approximately 54% joint efficiency versus approximately 54% untuk 5083 — essentially equivalent.

Namun, the absolute stress level in the 5086 Haz (~105 MPa) is lower, which means that for a given structural load, 5086 HAZ connections require slightly thicker plate or closer stiffener spacing than equivalent 5083 connections.

5.2 Physical Properties for Marine Design

Kepadatan dari 2.66 g/cm³ is the number that ultimately drives the business case for aluminum over steel in most marine applications.

Translating this into a hull structural weight comparison: A 5086 H116 hull panel of equivalent bending stiffness to a marine steel panel weighs approximately 45–55% of the steel panel’s weight.

On a 15-meter recreational vessel, this weight saving of 600–900 kg in hull structure directly reduces fuel consumption by approximately 15–22% at cruising speed — a substantial operational economy over a 20–30 year vessel service life.

5.3 Sifat mampu bentuk: 5086’s Competitive Differentiator

5086 H116’s formability advantage over 5083 H116 is not subtle — it is the primary engineering reason to specify 5086 when complex hull geometry is required.

The mechanism behind the advantage is straightforward: 5086’s lower magnesium content (3.5–4.5% vs. 4.0–4.9% for 5083) produces a lower yield strength, and lower yield strength directly translates to better cold formability because the stress required to plastically deform the material is lower relative to its fracture stress.

Minimum bend radius comparison (material thickness 4 mm):

For hull construction involving pronounced deadrise angles, flared topsides, compound-curved bow sections, and tight-radius bilge turns, this formability advantage is operationally decisive.

Fabricators working with 5086 H116 report 30–40% fewer cracking incidents during cold bending of hull frames and hull shell panels compared with equivalent 5083 H116 operations — a quality and productivity improvement that more than compensates for the modest material cost difference between the two alloys.

5.4 Fatigue Design Properties for Marine Structures

The welded joint fatigue properties of 5086 H116 follow the same Eurocode 9 / DNV S-N curve framework as 5083 H116, since both are welded aluminum alloys and the fatigue performance of welded joints depends primarily on weld geometry and quality rather than on the specific alloy:

Terpenting, 5086 Dan 5083 welded joints in the same detail category deliver equivalent fatigue life at equivalent stress ranges.

The choice between the two alloys does not significantly affect the fatigue design outcome, provided the weld quality and detail geometry are equivalent.

This equivalence means that designers can freely substitute 5086 untuk 5083 in fatigue-governed structural applications without redesigning weld details — an important practical simplification.

VI. Marine Corrosion Performance: Scientific Analysis

6.1 5086’s Electrochemical Position in Seawater

Marine Grade 5086 H116 Aluminum Plate in seawater develops a natural open circuit potential (OCP) of approximately −0.85 V versus the saturated calomel electrode (SCE) — marginally more noble (positive) dibandingkan 5083 (approximately −0.87 V), reflecting the slightly lower magnesium content.

This small difference is practically insignificant for most marine design purposes, as both alloys occupy the same general position in the galvanic series and respond similarly to the same cathodic protection systems.

The passive film on 5086 in seawater is a thin (2–8 nm), amorphous aluminum oxide layer that forms spontaneously on exposure to oxygen-containing environments and maintains itself through a dynamic balance of dissolution and repassivation.

The key performance metric is the pitting potential — the electrochemical potential above which pits nucleate — and 5086’s pitting potential in seawater at 25°C falls at approximately −0.65 to −0.75 V versus SCE.

Since the natural OCP (−0.85 V) is significantly more negative than the pitting potential, 5086 in normal seawater service operates with approximately 100–200 mV of cathodic protection from its own bulk potential — a self-protective buffer that provides baseline resistance to pit nucleation.

6.2 The Three Critical Corrosion Modes and 5086’s Defense Mechanisms

Exfoliation Corrosion: The Primary H116 Defense

Exfoliation attacks 5xxx alloys through the elongated, pancake-shaped grain boundaries produced by rolling — intergranular seawater penetration progressively lifts successive plate layers along rolling planes, creating the characteristic blistered, delaminating appearance that gives exfoliation its name.

The mechanism requires three conditions simultaneously: a sensitized grain boundary network (continuous beta-phase coverage); an electrolyte (air laut) capable of penetrating the grain boundary; and the geometric constraint of elongated grains that forces the corrosion product expansion to express as inter-layer delamination rather than dispersed general attack.

5086 H116 attacks this mechanism at its first prerequisite. By controlling cold reduction to produce an interrupted, discontinuous grain boundary beta-phase distribution, H116 temper removes the continuous intergranular pathway that seawater requires for progressive exfoliation.

Selain itu, 5086’s lower magnesium content (versus 5083) means that even without H116 temper control, the grain boundary beta-phase tends to form more slowly and in a more discontinuous pattern — providing an additional margin of safety that explains why 5086 in H32 temper shows better exfoliation resistance than 5083 in H32 temper, despite neither meeting the ASTM B928 certification requirement.

Retak korosi stres (SCC): Di mana 5086 Outperforms 5083

SCC combines sustained tensile stress with an active corrosive environment to propagate cracks at stress intensities far below the fracture toughness of unstressed material.

In sensitized 5xxx alloys, the continuous grain boundary beta-phase film enables anodic dissolution crack propagation. 5086 H116’s SCC resistance benefits from two reinforcing mechanisms: the H116 temper’s disruption of continuous grain boundary beta-phase (same as for exfoliation), and the lower magnesium content’s inherently slower sensitization kinetics.

Published data from long-term SCC testing of 5086 H116 demonstrates resistance to cracking at sustained stress levels up to 60% of yield strength in alternate immersion testing (ASTM G44) — superior to 5083 H116 (typically resistant to approximately 50% of yield strength) and dramatically superior to sensitized H32 material (which can crack at 20–25% of yield strength).

For hull structures carrying residual welding stresses of 30–50 MPa, this SCC resistance margin is adequate for normal marine service — but not unlimited. Any sustained tensile stress combined with a sensitization-promoting thermal environment deserves engineering attention.

Korosi pitting: The Baseline Seawater Attack

Pitting initiates at sites where the passive film is weakest: intermetallic particle-matrix interfaces, grain boundary emergence points, and surface scratches that expose fresh aluminum.

For Marine Grade 5086 H116 Aluminum Plate, the dominant pit initiation sites are Al₃Fe and Al₆Mn intermetallic particles, which are cathodic to the aluminum matrix and create local galvanic cells that dissolve the surrounding aluminum.

The iron impurity limit of ≤0.50% for 5086 (versus ≤0.40% for 5083) means that 5086 can in principle contain more Al₃Fe particles — a minor corrosion resistance disadvantage compared with 5083. Dalam praktiknya, most marine-grade 5086 producers hold iron below 0.30%, making this theoretical difference negligible.

Long-term immersion test data for 5086 in synthetic seawater (ASTM D1141) demonstrates average pit depths of 0.10–0.25 mm after 5 years — a corrosion rate of 0.02–0.05 mm/year that comfortably accommodates the plate thickness reserve available in marine hull plating.



VII. Marine Applications and Vessel Types

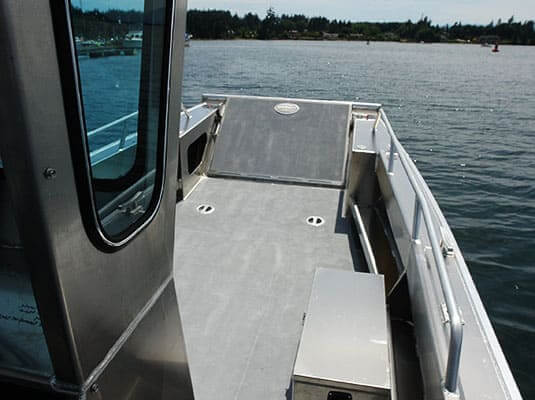

7.1 Recreational and Sport Boats: The Dominant Application Domain

The recreational boating market accounts for the largest proportion of 5086 H116 consumption globally, driven by the alloy’s exceptional combination of formability, seawater corrosion resistance, and weight efficiency for the vessel types and sizes that dominate recreational construction (6–18 m LOA).

Offshore aluminum fishing boats in the 6–12 m range represent the archetype 5086 H116 application. These vessels need compound-curved hulls with pronounced deadrise (typically 18–24°) and flared bows for offshore sea-keeping, seawater corrosion resistance for topsides that may not be painted for years between refits, and structural strength adequate for offshore service without excessive weight that would compromise performance with smaller outboard or stern-drive powerplants. Marine Grade 5086 H116 Aluminum Plate in 3.0–5.0 mm gauge satisfies all three requirements simultaneously.

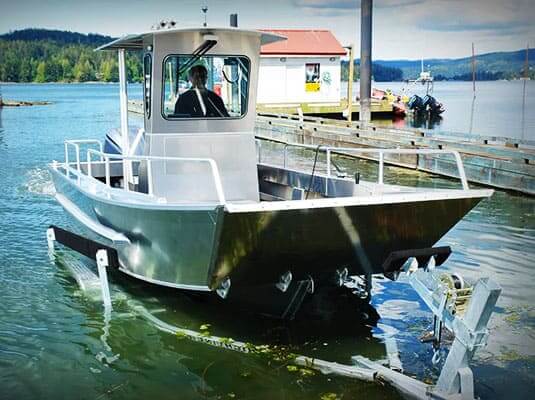

Sailboat hulls present some of the most geometrically complex challenges in aluminum boat building — swept keels, curved transom sections, flared topsides, and pronounced tumblehome all require tight-radius bending that 5086 handles more reliably than 5083. Selain itu, sailboat structural loads are generally lower than equivalent-length powerboat loads (no slamming; lower speed), making the 10% yield strength difference between 5086 Dan 5083 structurally irrelevant for most sailing vessel applications. Experienced aluminum sailboat builders — including specialists in Europe and New Zealand — consistently specify 5086 H116 for topsides and above-waterline structure, reserving 5083 H116 for keel attachment areas and waterline/bottom plating where structural demands justify the extra strength.

Center console and walkaround boats (7–10 m) benefit from 5086’s formability when producing the deep-sided console structures, fish box surrounds, and freeboard sections that define these hull types. Builders report significantly fewer weld repairs from cracking during forming of these complex profiles when using 5086 H116 versus 5083 H116 — a direct production cost saving that more than compensates for any minor material cost premium.

7.2 Commercial Workboats: Combining Structural Performance with Formability

Commercial workboats — the practical, utilitarian vessels that service offshore platforms, transfer crew, conduct surveys, and support harbor operations — represent the second major consumption domain for 5086 H116.

Crew transfer vessels (CTVS) for offshore wind farm maintenance demonstrate the alloy selection optimization strategy most clearly. A typical 24 m CTV hull design often employs 5083 H116 (6–8 mm) for the bottom plating — where slamming loads from repeated turbine access at low sea states impose high cyclic stresses — and 5086 H116 (5–6 mm) for topsides and superstructure panels, where the lower structural demand allows the more formable alloy and where the complex crew accommodation geometry benefits from 5086’s tighter bending radius capability.

Pilot boats and harbor service craft (12–22 m) present particularly favorable conditions for 5086 H116: moderate structural loads (displacement rather than planing operation in most cases), complex hull forms typical of round-bilge displacement design, and the regular freshwater hosing-down of topsides that characterizes harbor vessel maintenance. The lower sensitization risk of 5086 H116 versus 5083 is a secondary advantage in harbor vessels that experience deck steam cleaning — a potential sensitization-temperature exposure that is entirely absent from the specification of hull construction alloys in most shipyards.

7.3 Marine Structures and Offshore Applications

Beyond boat hulls themselves, 5086 H116 plate serves extensively in marine structural applications where aluminum’s corrosion resistance and light weight are valued but maximum structural performance is secondary:

Floating marina finger docks and pontoons menggunakan 5086 H116 for their exceptional corrosion resistance in the aggressive environment of marina waters (elevated pollutant levels from fuel spills, antifouling paint runoff, and organic contamination from berthed vessels). The lower structural demands of floating dock construction make 5083’s extra strength unnecessary, while 5086’s formability simplifies the fabrication of the pontoon shapes and connection brackets that characterize marina dock systems.

Offshore platform walkways, handrails, and gratings — where the primary function is corrosion resistance and personnel safety rather than structural load-carrying — use 5086 H116 for its combination of adequate strength (sufficient for walkway loading per applicable codes), excellent corrosion resistance without painting (reducing maintenance in remote offshore locations), dan ringan (reducing the deadweight imposed on platform topside structure).

Gangways and access ramps for vessel-to-platform and vessel-to-shore transfer present formability demands that favor 5086: the articulating sections, curved guide rails, and angled landing platforms of modern gangway systems require bending operations where 5086’s tighter minimum bend radius enables designs that would require pre-annealing of 5083.

7.4 Naval and Military Secondary Structure

Ketika 5083 H116 dominates primary hull structural applications in naval vessel construction, 5086 H116 finds substantial use in naval vessel secondary structure and superstructure:

Superstructure panels and enclosures on fast patrol craft and support vessels benefit from 5086’s formability when producing the non-planar, compound-curved surfaces that characterize modern naval vessel superstructure aesthetics (designed for reduced radar cross-section). Naval architects designing to stealth criteria specify curved, angled superstructure panels that challenge fabricators working with 5083; the transition to 5086 for these elements significantly improves first-pass fabrication success rates.

Mine countermeasure vessel (MCMV) auxiliary structure — non-structural panels, internal accommodation dividers, deck machinery housings — frequently uses 5086 H116 where weight reduction and corrosion resistance matter but maximum structural performance does not. The non-magnetic requirement that drives MCMV hull material selection to aluminum (or GRP) also applies to secondary structure, membuat 5086 a natural fit.

Amphibious craft combined construction strategies increasingly employ 5086 H116 for topsides, ramp side panels, and crew compartment structure, reserving 5083 H116 for the bottom shell and structural frames that carry the concentrated loads of vehicle loading during beach landing operations.

XIII. Quality Standards, Pengujian, and Certification

Certified Marine Grade 5086 H116 Aluminum Plate sits within a framework of complementary standards that address composition, properti, sensitization, dan dokumentasi:

IX. Kesimpulan

The most important conclusion of this comprehensive examination is a reframing of how Marine Grade 5086 H116 Aluminum Plate is perceived. Too often described as “the less strong alternative to 5083 for applications where reduced strength is acceptable,” Marine Grade 5086 H116 Aluminum Plate is more accurately understood as the precision material choice for applications where superior formability, equivalent long-term marine corrosion resistance in certified H116 temper, and marginally better sensitization robustness combine to deliver better engineering outcomes than 5083 H116 would achieve.

The applications that specifically benefit from 5086 H116 are numerous and commercially significant: recreational aluminum boats with complex hull forms (the largest volume sector in marine aluminum consumption), sailboat hulls and topsides, commercial workboat secondary structure, offshore platform aluminum structures, mixed-alloy hull construction strategies, and the rapidly expanding battery-electric vessel market. In all these applications, 5086 H116 is not a fallback — it is the correct engineering answer.
